Pan type feeding system for breeder

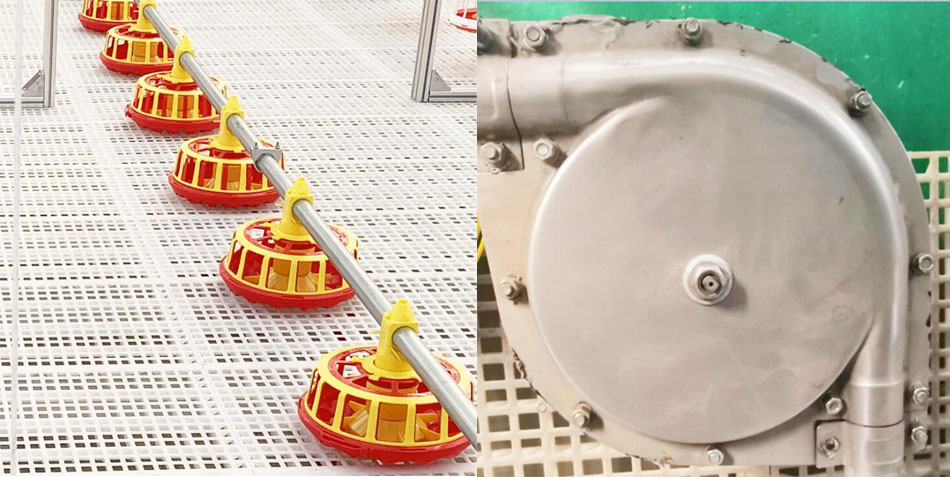

1. The diameter of the feeding pan is 400mm, with 18 spokes, this type of feeder pan can feed 1.7hens than the ordinary breeder feeder pan.
2. There are 3 level of flood control switch, according to the transport capacity, different kinds of switch insert piece can be placed to adjust feed transport capacity easily, and also improve feed distribution uniformity.
3. The handy adjust ring on the top of the pan can allow an optional regulation of feed (2 optional feed level) according to day old and the size of breeders, saving feed.
Product description
| Performance | Feeder Pan |
4 pan/3m or 3 pan/3m Material: PP Feed capacity : 12.5 bird per pan |
| Feed pipe |
4 holes/3m or 3 holes/3m Material:hot galvanized Feed thickness |
|
| Corner | Corner and corner shell material- hot galvanized sheet or stainless steel, the idler material- cast iron. | |
|

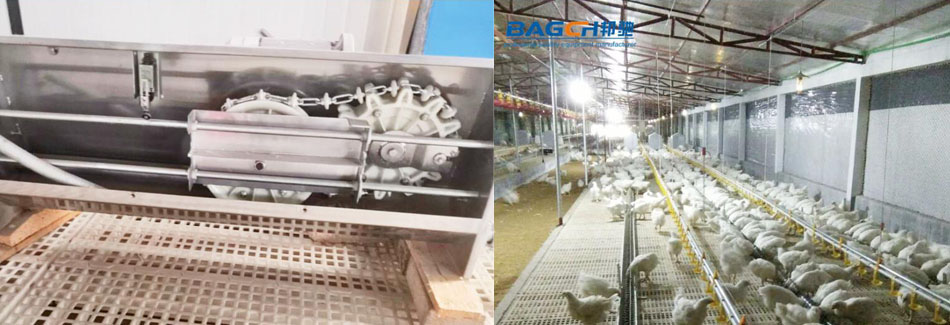

Drive system |
Gear Motor: 1.1kw or 1.5kw Drive system shell: stainless steel Driving (driven) wheel: reinforced nylon |
|
|
High Strength Disc-Chain |
long lasting and anti- fracture Disc is durable and resist breakage after special processing. Breaking force : 1.6tons |
