Chain type feeding system for breeder
1.The driving device is cyclical pin wheel reducer, which working more stable, feeding averagely, low noise compare with gear reducer, the feeding speed can up to 36m/min.
2.The feed trough and connection parts is elevating style, the height can be adjusted according to the different broiler life stage.
3.The surface of 90 digress corner wheel and guiding orbit have the special treatment of hardness, the bear is no need fill oil whch material is alloy whicn anti. corrosion, and have the long working life
Product description
| Performance |

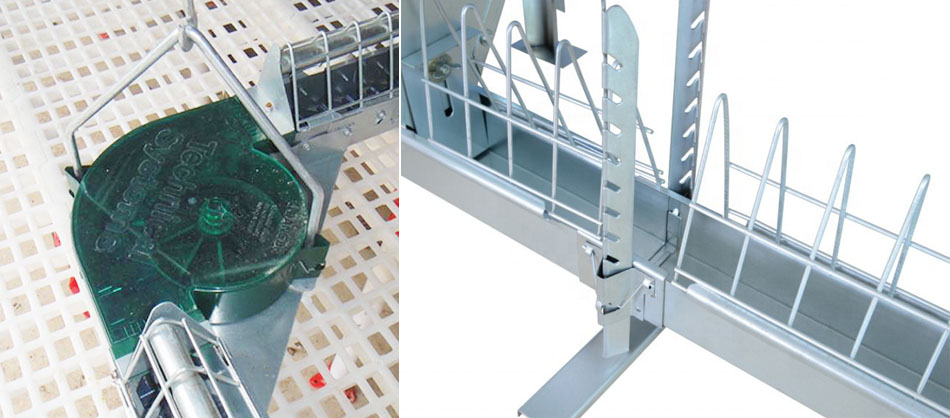

Corner |
Import from South Africa 90 degree Corner and slideway surface are treated by special harden process, with alloy bearing no oiling injection. |
| Chain | Import from South Africa | |
| Feed trough,Grill |
The height of feed trough can be adjusted according to different raising period Feed trough is made of anti-rust material, and grill with 44mm distance can effectively eparate the male and female birds. Can also be customized according to customer specifications with different grill |
|

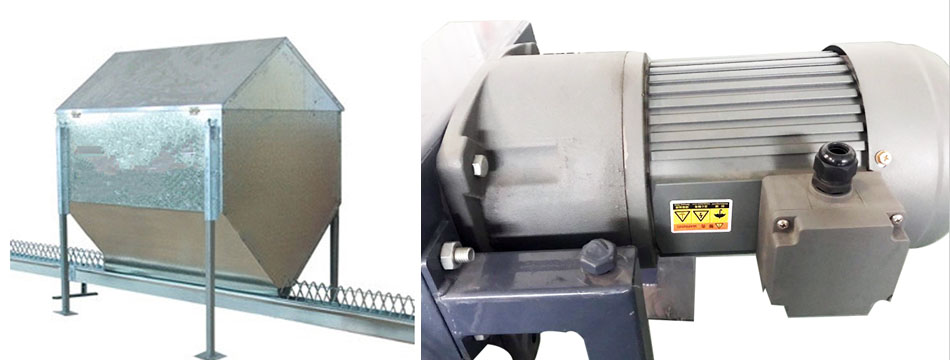

| Feed box |
Material: hot dip galvanized steel Zinc coated:275g/m2 Thickness:1.2mm Capacity:240 kgs |
|
|
Drive motor |
Drive device adopt vertical reducer motor, which is more reliable and steady, lower noise and uniform delivery feed compared with mechanical reduction gear. Delivery speed reach up to 36m/min. |
