Manual laying nest
1.Be made of 0.5mm galvanized steel plate. 24 hole design, galvanizing 275g/cm2 of the zinc, reach international standard.
2.High quality plastic pedal, smooth and no throns, better than wood. can use long life.
3.Two sides egg nest sheet have air holes. make air flow in nest , creat a good production environment. to reduce the floor and ground egg.
4.The egg tray is made of modified PP material. size 375mm*275mm, more durable.

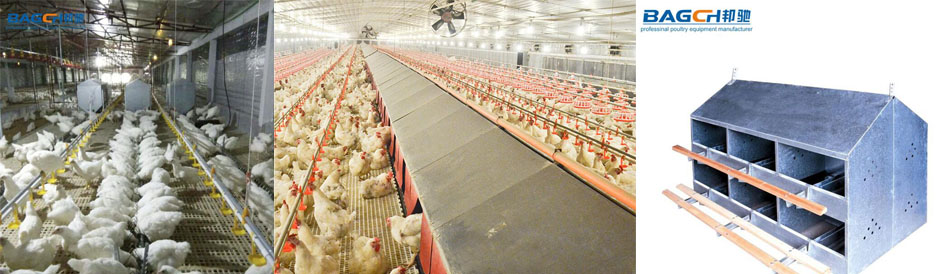

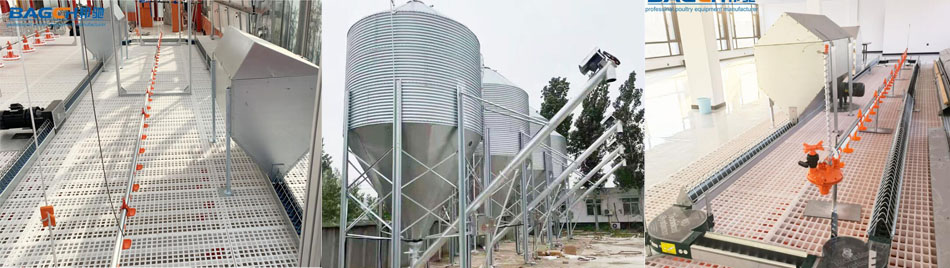

Breeder Chain Feeding System
Automatic Breeder Hen Nest Box
Manual Nest Box
1.24 holes design for 96 layers.
with plastic laying trays
2.laying nest diamension:1550*970*1050mm,weight
is 40kg.
3.change wood pedal to high
quality plastic pedal which is more smooth ,no corrosion and longer service
life.
4.hot-dip galvanized steel
plate,275g zinc coated per square meter.strong and good toughness.
5.service life more than a
decade.
6.Side holes design
to keep the air flow,better ventilation,creat comfortable laying environment.
7.To adapt to any installation of sheds and a variety of forms
| Performance | Material |
Material: hot dip galvanized steel Zinc coated:275g/m2 |
| Type | 24 holes/12 holes | |
| Capacity | 96/48 chicken | |
| Size | 1500*770*1090mm | |
| Egg tray | PVC material | |
| Imitate mat | Material :PEAccording to actual selection |
