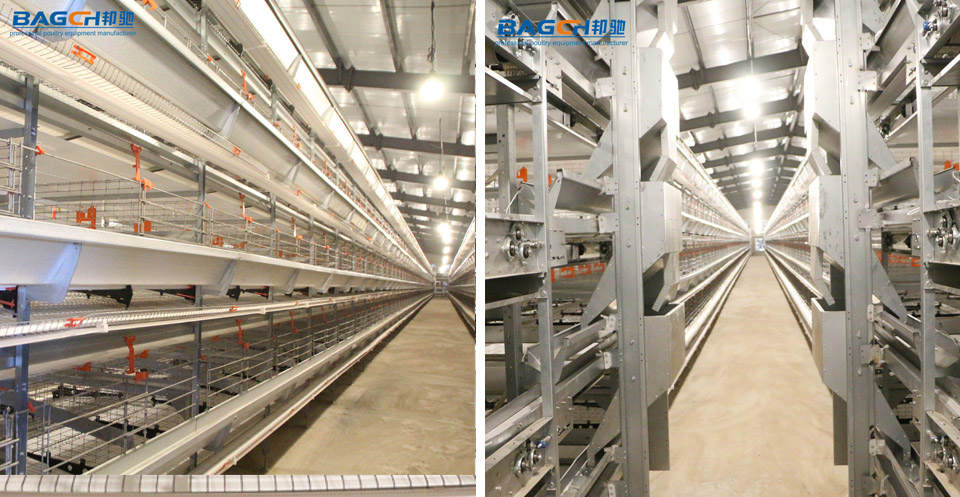

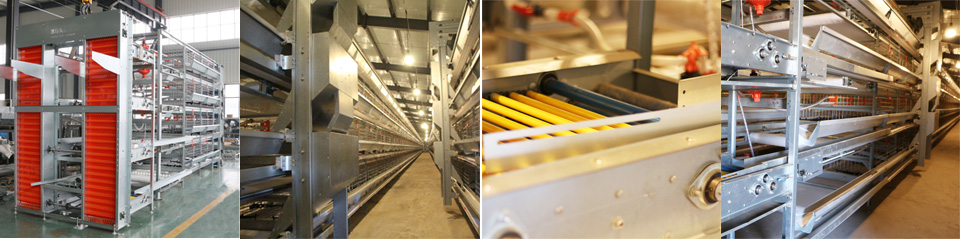

H Type Layer Battery Cage

Advantage

1. High Land Utilization

>Reasonable High-density Raising —save land and reduce investment cost.

>3-10 Tiers Battery Cage —the land can raise more birds.

2.Comfortable and Safe Feeding Environment

>Uniform Trolley Feeding System — it transports the feed to birds smoothly and without separation. easy maintenance.

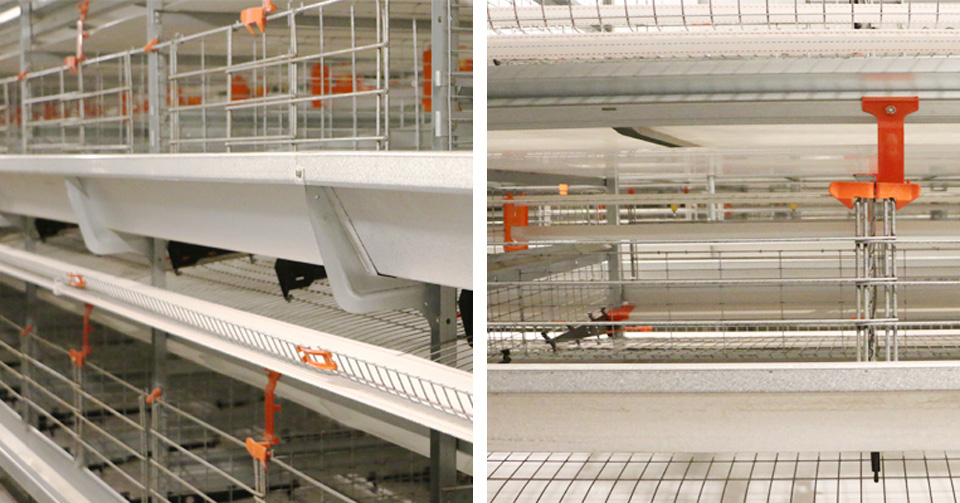

>Deep ‘V’ Feed Trough with Inner Rim — will not allow the feeds to be thrown away when chickens eat, thereby saving feed cost.

>Timely and Effective Manure Remove Methods — dust-free removal without spillage.this contributes to improved hygiene and increases the health and well-being of the birds.

>Distance Between Two Sides Cage — producing better ventilation effect and preventing the vent pecking.

>Automatic Ventilation and Temperature Control System — our control keeps precise and stable

temperature.meet the requirement of the birds.

>Automatic Egg Collecting System—it raises the working efficiency and reduces the labor cost and percentage of egg broken.

3.Efficiently Chicken Raising Equipment

>Hot-dip Galvanized Material—ensures the service life of 15-20 years.

>Lower Egg Broken Rate Bottom Mesh — bottom mesh has better elasticity to avoid egg broken. the bottom mesh is smooth and without a rag.8 degree slope at the bottom mesh.

>50kg/m2 Load-bearing Bottom Mesh — two reinforcing ribs at each bottom mesh.

>Full Automatic Chicken Raising System — highly-automatized with high efficiency. centralized

management to save energy and facilitate manual operation.

>Entire Cage Front Consists of Sliding Grids — moving birds in and out becomes simple.sliding door with easier operation,no chicken escape.

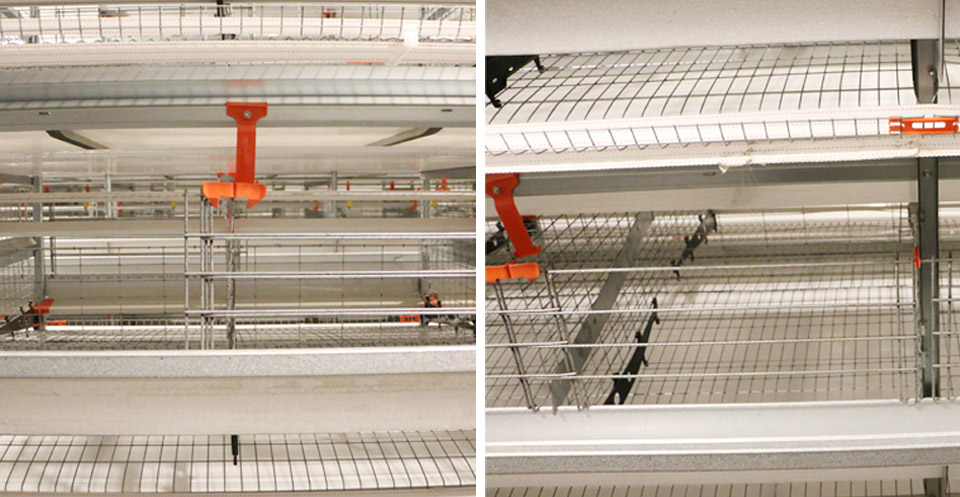

Cage and frame

1. Punching from the hot dip galvanized steel panels, zinc cocating 275g/m2, no welding, all fixed by screws.

2. Feeding through: galvanized steel

3. Drinking system: Including squre pipes, nipples,regulators, drip cups, steer wires and installation accessories

Automatic Feeding system.

1. Feeding trolley, Material is hot dip galvanized steel

2. Feed conveying and dispensing device:

1) Delivery auger pipe: material: PPR, Diameter: 90mm

2) Auger: import from South Africa

3. Feed silo: 5t to 30t can be choosing

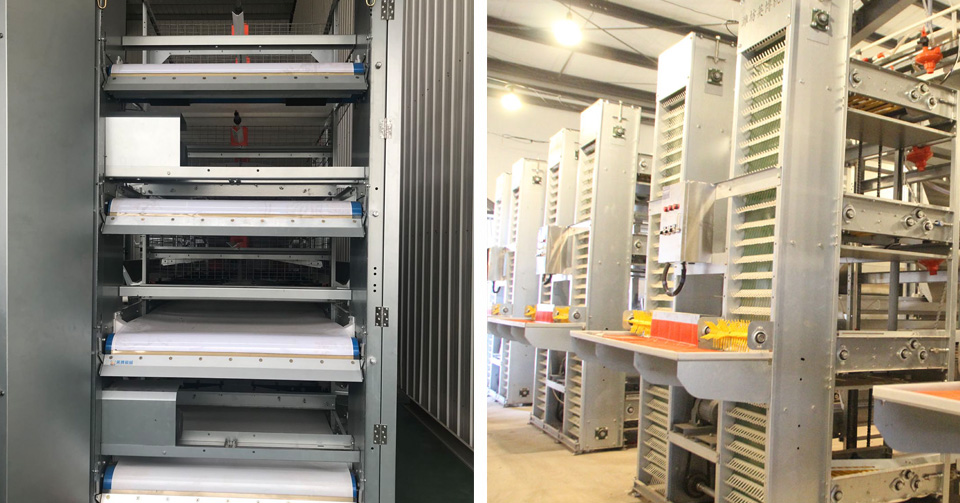

Automatic Manure Removing System

1. Belt type manure cleaning machine

2. Manure conveying belt: Material is PP

3. Horizontal transport manure device: 1) convey manure out of layer house and

to truck automatically. 2) Width: 44cm

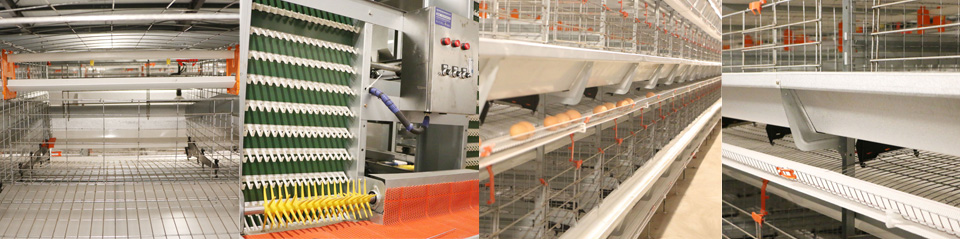

Egg collection System

It has the function of preventing the eggs from falling and breaking, which can reduce the expenditure of manpower and material

resources. It is used in large-scale chicken farms.

automatic egg collection system includes introduction device, egg picking device, export device, buffer device, conveying device,

sprocket gear and long drop chain

Specification:

Motor:0.4KW,50HZ,380V,

High quality belt:width 100mm

Product Import Parts

Related Products

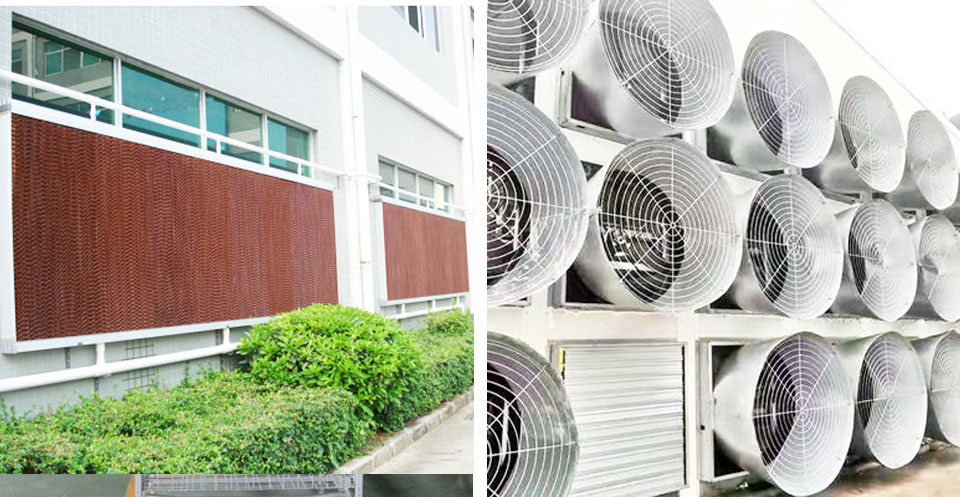

Cooling Pad function:

When the air goes through cooling pads, the heat will
be taken down by the evaporation of water. So the air
will be cooled before going into your poultry farms.

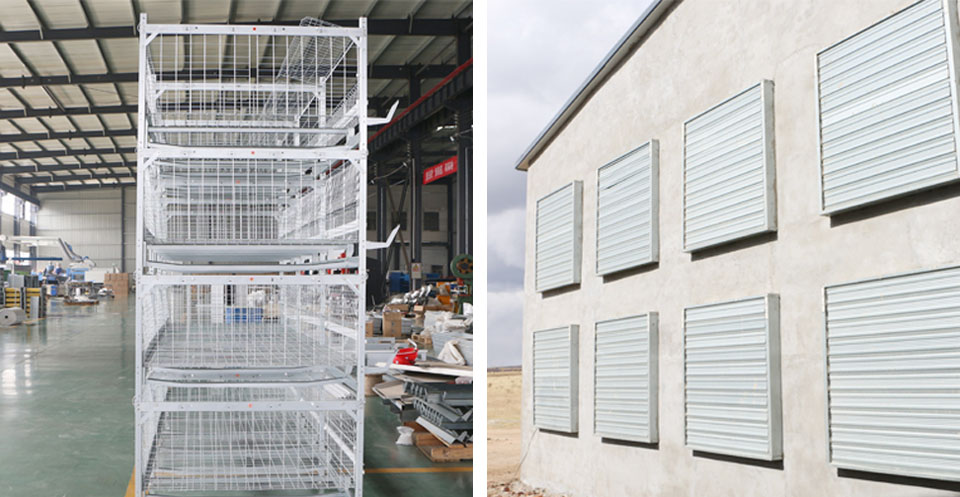

Exhaust Fan function:

Ventilation fan system controls poultry house inner environment, provides fresh air, proper humidity for
your chickens, ensuring your broilers provide
maximum production.

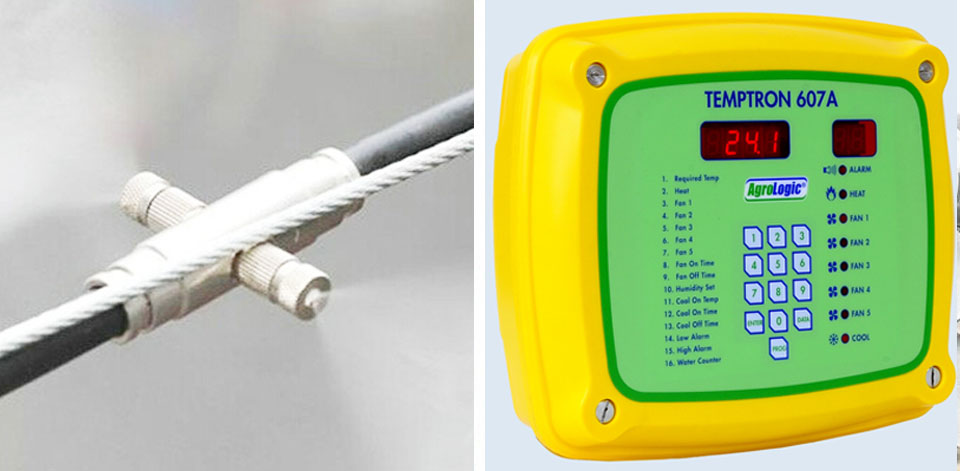

Foggy system

1) Pump: 1.5kw/2.2kw

2) Pipes: PE, Diameter:10mm

3) Nozzles: Pure copper

4) Nozzle base: Stainless steel

Environment Control system

Option 1: Agrologic Brand,Munters Brand, Model: T607/T610/T616/AC2000

Option 2: Our own brand, also with good function.
